Power: 500W
Foward Thrust: 7kg
Backward Thrust: 7kg
Technical Parameters
| Control Signal: | CAN |
| Feedback signal: | CAN |
| Rated voltage: | 48V |
| Direction of rotation: | Right-handed |
| Working water depth: | 6000m |
| Housing: | Titanium alloy |
| Weight: | 2475g |
| Length: | 166mm |
| Maximum outer diameter: | 130mm |
● Selection Parameters
| - | Rating | 50% of rated voltage |
| Forward Thrust | 7.0Kg | 4.2Kg |
| Reverse thrust | 7.0Kg | 4.6Kg |
| Forward speed | 2300rpm | 1712rpm |
| Reverse RPM | 2300rpm | 1851rpm |
| Forward power | 500W | 317W |
| Reverse power | 500W | 317W |
● Product Features

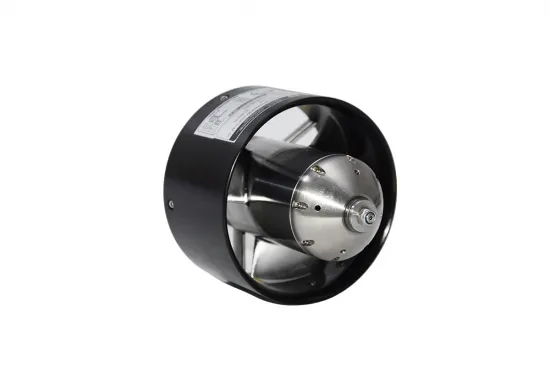

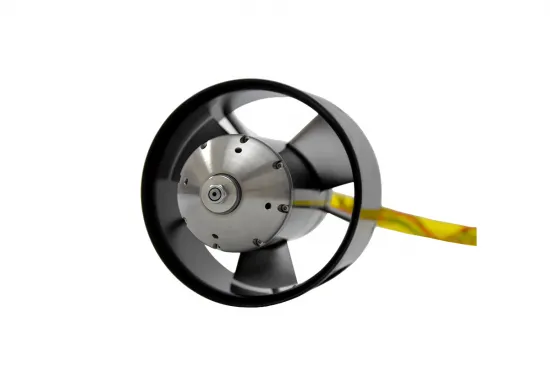

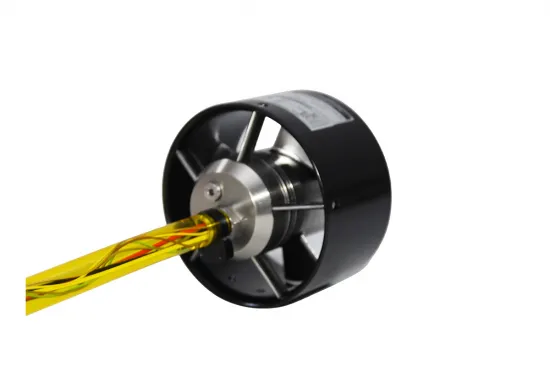

Suitable for AUV vertical, horizontal thruster, and ROV
