Power: 6.5 kW
Forward Thrust: ≮100 kg
Backward Thrust: ≮100 kg
Technical Parameters
| Rated speed，Rated voltage: | 1800r/min，300VDC |
| Housing，Propeller material: | Titanium alloy，Stainless steel |
| Rotation direction: | Left-hand / Right-hand |
| Working water depth: | 0-6000m,Oil-filled seal |
| Sealing form: | Zero penetration magnetic coupling rotary seal structure |
| Drive，Signal power supply: | External，24VDC |
| Control mode/Speed feedback: | CAN BUS |
| Temperature: | Storage temperature: -30~80℃, working temperature: -5~40℃ |
● Selection Parameters
| Working water depth | Outline ruler (mm) | Length(mm) | Air weight (kg) | Connector model |
| 0-6000m | φ296.2 | 426.7 | 24 | YMHD011(Thruster)/BH10M(Drive module) |
● Advantage

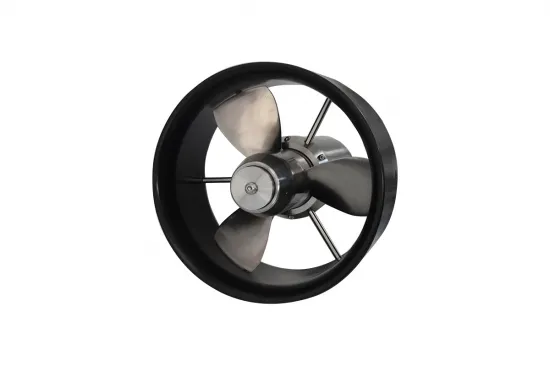

The TZ2042S thruster system is mainly arranged in the body of the underwater vehicle. It generates thrust through the rotation of the propeller to meet the requirements for vertical and lateral movement of the vehicle. The vertical and lateral propulsion system consists of a thruster, controller, duct, and connecting cables. The thruster itself comprises a drive motor, magnetic coupling seal assembly, encoder, propeller, and housing. The controller communicates with the UUV's main control computer via a CAN BUS interface.
