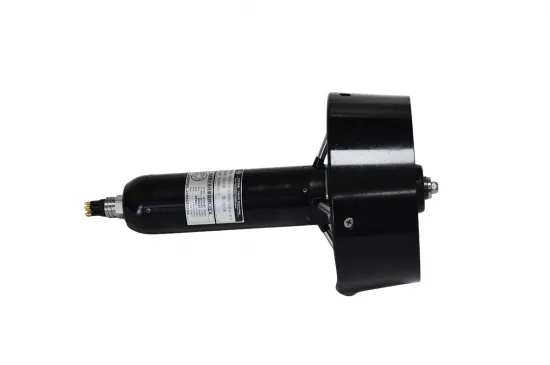

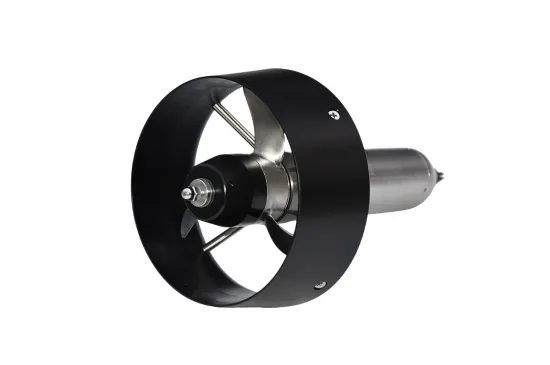

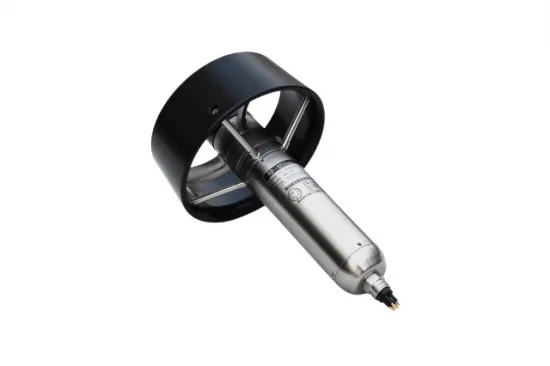

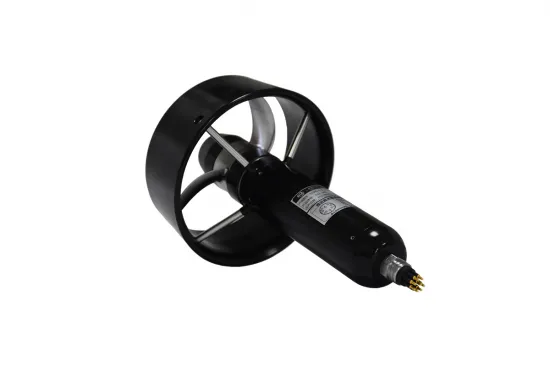

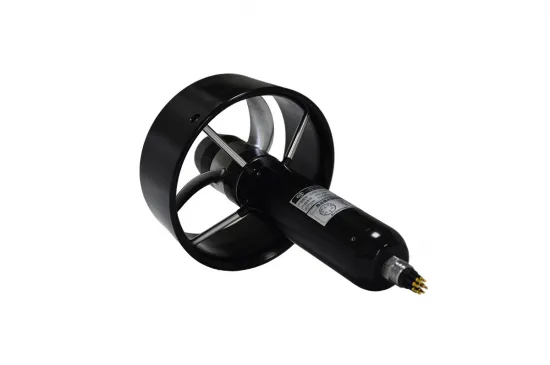

Power: 650W
Forward Thrust: 14.5kg
Backward Thrust: 7.5kg
Technical Parameters
| Rated speed: | 1900r/min |
| Rated voltage: | 48VDC/60VDC/72VDC/100VDC/120VDC/160VDC/200VDC/260VDC/300VDC |
| Motor compartment: | Aluminum alloy (0-850m)/titanium alloy |
| Rotation direction: | left-hand right-hand |
| Propeller material: | Stainless steel |
| temperature: | Storage temperature: -40~70℃, working temperature: -5~40℃ |
| Sealing form: | Zero penetration magnetic coupling rotary seal structure |
| Working water depth: | 0-850/0-1500/0-3000/0-6000/Full sea depth Working water depth>1500. Oil-filled seal |
| Drive: | Built-in (0-1500m)/external |
| Signal power supply: | 12VDC (±5%), ≤ 250mA |
| Air deflector: | Black |
| Control mode/speed feedback: | Analog voltage (pulse feedback / analog voltage feedback) PPM RS485 CAN |
● Selection Parameters
| Working waterdepth | Overall dimensions (mm) | Length(mm) | Air weight (kg) | Weight in water (kg) | Connector model | Optional voltage levels |
| 0-850 & 0-1500 | φ176.6 | 315.8 | 2.4~2.8 | 1.7~2.1 | MCBH8M | 48~300VDC |
| 0-3000 & 0-6000 | φ176.6 | 273.9 | 3.0 | 2.2 | MCPBOF8M | The outer diameter of the oil pipe is 3/4''and the outer diameter of the oil pipe is 3''. |
| Full sea depth | φ176.6 | 273.9 | 3.1 | 2.3 | PBOF8M |
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
● Product Features
Tianjin Haoye Technology Co., Ltd. was established in 2013. It is a scientific and technological enterprise specializing in R&D and production of underwater equipment supporting products, to develop and sell underwater thrusters, underwater DC brushless motor, rotary actuator, electric outboard, AUV power section etc.. Our mission is to use the spirit of perfectionist craftsmanship to create first-class underwater equipment supporting products with user experience and to provide the best solution for the underwater equipment industry.
