Power: 950W
Forward Thrust: 12.7kg
Backward Thrust: 12.7kg
Technical Parameters
| Rated speed: | 1600r/min |
| Rated voltage: | 48VDC/60VDC/72VDC/100VDC/120VDC/160VDC/200VDC/250VDC/300VDC |
| Motor compartment: | Aluminum alloy /titanium alloy |
| Rotation direction: | left-hand right-hand |
| Propeller material: | Stainless steel |
| temperature: | Storage temperature: -40~70℃, working temperature: -5~40℃ |
| Sealing form: | Zero penetration magnetic coupling rotary seal structure |
| Working water depth: | 0-850/0-1500/0-3000/0-6000/Full sea depth Working water depth>1500. Oil-filled seal |
| Drive: | Built-in (0-1500m)/external |
| Signal power supply: | 12VDC (±5%), ≤ 250mA |
| Air deflector: | Black |
| Control mode/speed feedback: | Analog voltage (pulse feedback/analog voltage feedback) PPM RS485 CAN |
● Selection parameters
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
● Advantage
Applicable to:
Remotely operated vehicle (ROV) with a diameter of over 400mm.
Feature:

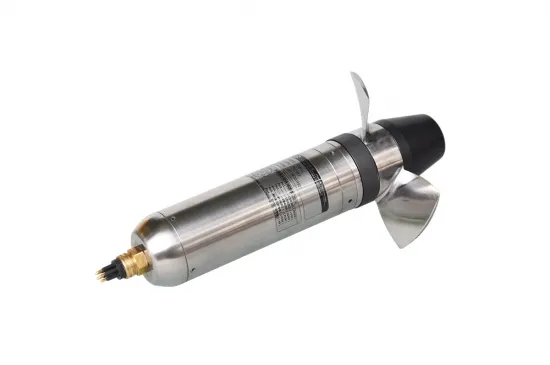

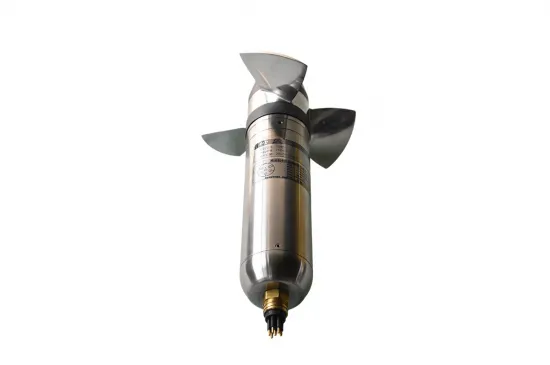

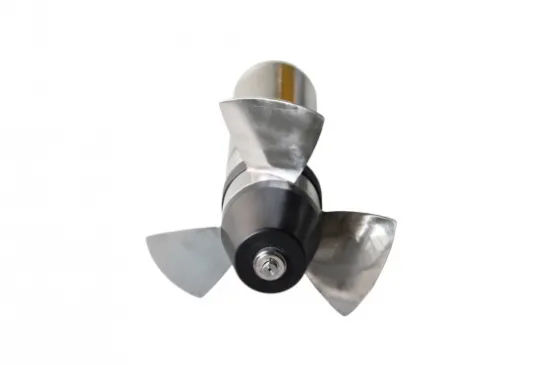

Its spiral blades are symmetrical and have balanced forward and Backward Thrust. The T540 underwater thruster has a speed closed-loop function, ensuring that the speed accuracy of each device reaches ± 10rpm, meeting the requirement of high consistency.
