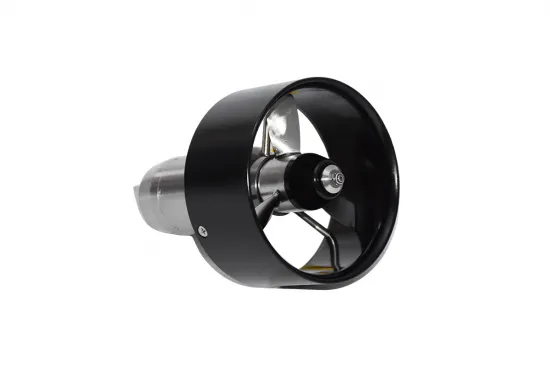

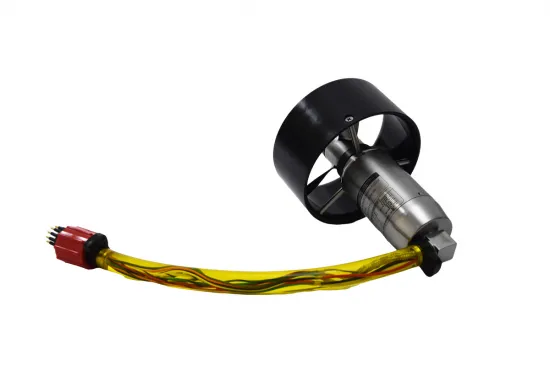

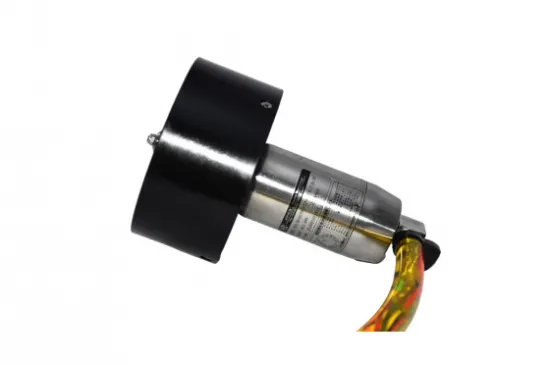

Power: 500 W
Forward Thrust: 8 kg
Backward Thrust: 8 kg
Technical Parameters
| Rated speed | 2700r/min | |
| Rated voltage | 24VDC/36VDC/48VDC/65VDC/80VDC/100VDC/130VDC/150VDC/200VDC/250VDC/300VDC | |
| Housing | Aluminum alloy (0-850m)/titanium alloy | |
| Rotation direction | left-hand / right-hand | |
| Propeller material | Stainless steel | |
| temperature | Storage temperature: -40~70℃, working temperature: -5~40℃ | |
| Sealing form | Zero penetration magnetic coupling rotary seal structure | |
| Working water depth | 0-850/0-1500/0-3000/0-6000/Full sea depth Working water depth>1500. Oil-filled seal | |
| Drive | Built-in (0-1500m)/external | |
| Signal power supply | 12VDC (±5%), ≤ 250mA | |
| Air deflector | Black | |
| Control mode/speed feedback | Analog voltage (pulse feedback/analog voltage feedback) PPM RS485 CAN | |
● Selection parameters
| Working water depth | Outline ruler (mm) | Length(mm) | Air weight (kg) | Weight in water (kg) | Connector model | Optional voltage levels |
0-850 & 0-1500 | φ135.1 | 263.7 | 1.8~2.1 | 1.2~1.5 | MCBH8M | 48~300VDC |
| 0-3000 & 0-6000 | φ135.1 | 263.7 | 2 | 1.6 | MCPBOF8M | Tube O.D. 3/4'' Tube Bend OD 3'' |
| Total depth | φ135.1 | 263.7 | 2 | 1.6 | PBOF8M |
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
● Advantage
Applicable to:
Small ROV
Feature:
Its uniqueness lies in the synchronous design of the propeller and nozzle, which makes the spiral blades symmetrical and the forward and reverse thrust balanced. The nozzle provides thrust amplification for propulsion. The propeller switches more smoothly between forward and reverse, improving reliability and durability. By directly connecting the propeller to the DC motor, some shaft losses are reduced and noise is lowered.
Equipped with a speed closed-loop function, this function ensures that the speed accuracy of each device reaches ± 10rpm when multiple devices are used simultaneously, meeting the requirement of high consistency.
