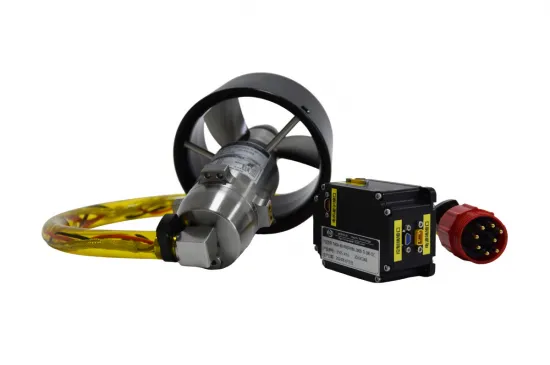

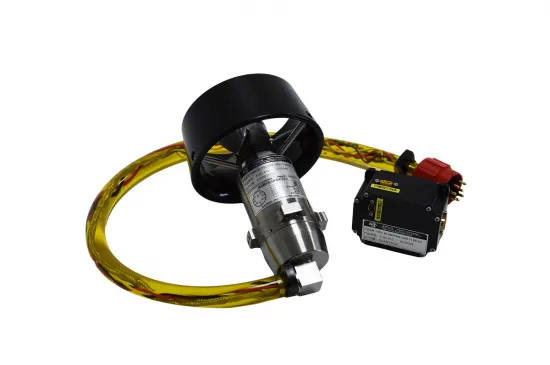

Power: 500 W
Forward Thrust: 10.5 kg
Backward Thrust: 6.6 kg
Technical Parameters
| Rated speed | 2940r/min |
| Rated voltage | 24VDC/36VDC/48VDC/65VDC/80VDC/100VDC/130VDC/150VDC/200VDC/250VDC/300VDC |
| Housing | Aluminum alloy (0-850m)/titanium alloy |
| Rotation direction | left-hand right-hand |
| Propeller material | Stainless steel |
| Sealing form | Zero penetration magnetic coupling rotary seal structure |
| Working water depth | 0-850/0-1500/0-3000/0-6000/Full sea depth Working water depth>1500. Oil-filled seal |
| Drive | Built-in (0-1500m)/external |
| Signal power supply | 12VDC (±5%), ≤ 250mA |
| Air deflector | Black |
| Control mode/speed feedback | Analog voltage (pulse feedback/analog voltage feedback) PPM RS485 CAN |
● Advantage
Applicable to:
Small remotely operated vehicle (ROV) with a diameter not exceeding 200mm.
Feature:
By directly connecting the propeller with a DC motor, some shaft losses are reduced, noise is lowered, and the high requirements for power performance in underwater operations are met. At speeds of 1-4 knots, its efficiency performance is relatively balanced and it can operate stably in various complex underwater environments.
● Selection parameters
| Working water depth | Outline ruler (mm) | Length(mm) | Air weight (kg) | Weight in water (kg) | Connector model | Optional voltage levels |
0-850 & 0-1500 | φ133.8 | 263.7 | 1.7~2 | 1.1~1.4 | MCBH8M | 48~300VDC |
| 0-3000 & 0-6000 | φ133.8 | 263.7 | 1.9 | 1.5 | MCPBOF8M | Tube O.D. 3/4'' Tube Bend OD 3'' |
| Total depth | φ133.8 | 263.7 | 1.9 | 1.5 | PBOF8M |
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
