Power: 40 KW
Forward thrust: 550 KG
Backward thrust: 550 KG
Technical Parameters
| Rated Speed | 800 RPM |
| Rated Voltage | 300VDC |
| Motor Housing | Stainless Steel |
| Rotation Direction | Left/Right |
| Propeller Material | Stainless Steel |
| Temperature | Storage Temperature: -40 ~ 70℃ Operating Temperature: -5 ~ 40℃ |
| Sealing Type | Zero Permeation Magnetic Coupling Rotating Seal Structure |
| Working Water Depth | 300 meters |
| Driver | Built-in |
| Signal Power Supply | 24VDC (± 5%), ≤ 210mA |
| Housing | Black |
| Control Mode/Speed Feedback | CAN |

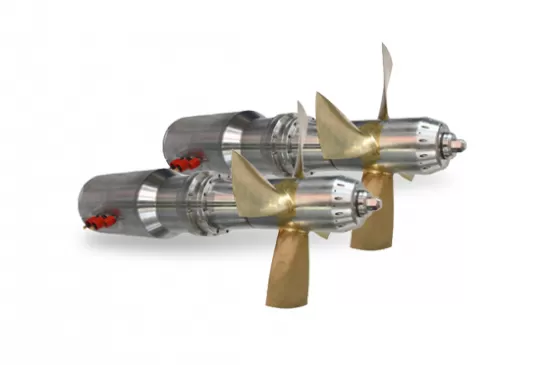

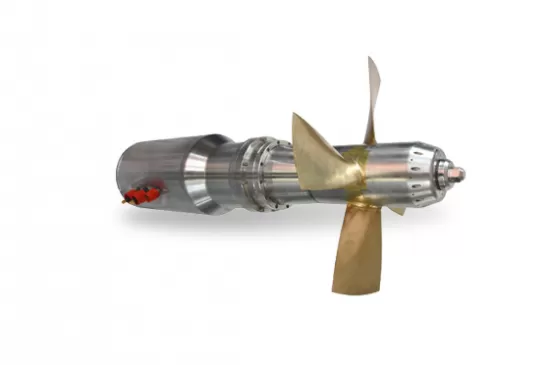

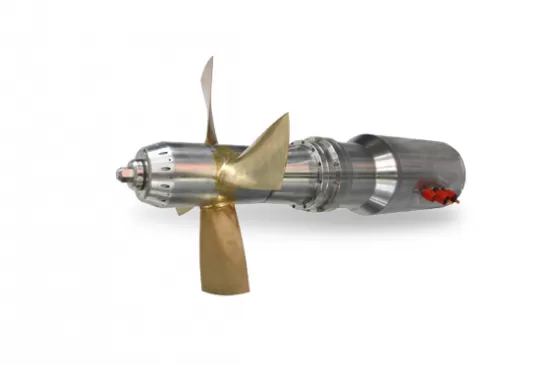

This 40kW horizontal underwater thruster is designed for heavy duty propulsion in workboats, offshore support vessels, floating platforms, and other marine systems requiring high thrust and long term stability. With a robust structure, water cooled brushless motor, and customizable control interface, it ensures efficient performance even in harsh environments.
Whether used for dynamic positioning, auxiliary propulsion, or maneuvering support, this thruster provides the power and reliability that shipbuilders and system integrators demand.
High power output up to 40kW for demanding marine operations
Stable and efficient propulsion with direct drive technology
Fully sealed and corrosion resistant structure for long service life
Horizontal installation design, easy to integrate with vessel hulls or platforms
Customizable control options including analog, PWM, or CAN bus
Proven reliability for offshore, industrial, and defense projects
Offshore workboats and tugboats
Dynamic positioning systems
Floating platforms and pontoons
Marine research vessels
Auxiliary propulsion for heavy duty electric boats
Model: T30005
Rated Power: 40 kW
Forward Thrust: 550 kg
Backward Thrust: 550 kg
Cooling Method: Water cooled
Structure: Horizontal installation type
Material: Marine grade with corrosion resistant protection
Haoye Technology, established in 2013, specializes in advanced underwater propulsion and marine drive systems. With more than a decade of research and development experience, we have delivered thousands of thrusters and propulsion units worldwide.
No matter if you are a shipbuilder, a marine system integrator, or a research institute, we can provide customized thruster solutions to match your technical and operational requirements.
Contact us today to request technical datasheets, CAD drawings, or a quotation for the T30005 40kW Horizontal Marine Thruster.
