Power: 580W
Forward Thrust: 8.5kg
Backward Thrust: 5.1kg
Technical Parameters
| Rated power | 580w |
| Feedback Signal | CAN |
| Rated voltage | 32VDC/48VDC/60VDC/72VDC/90VDC/110VDC/140VDC/180VDC220VDC/300VDC |
| Direction of rotation | left-hand right-hand |
| Working depth | 850m |
| Casing | Aluminum |
| Weight | 1305g |
| Length | 237mm |
| Maximum outer diameter | 116mm |
● Selection parameters
| - | Rating |
| Forward Thrust | 8.3Kg |
| Reverse thrust | 5.1Kg |
| Forward speed | 2080rpm |
| Reverse RPM | 2080rpm |
| Forward power | 580W |
| Reverse power | 580W |
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
● Advantage
Applicable to:
Small remotely operated vehicles (ROVs) with a diameter not exceeding 200mm.
Feature:

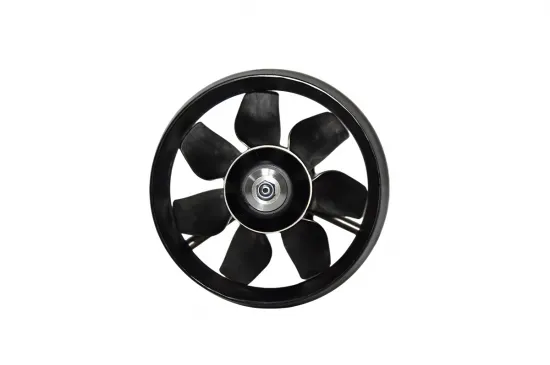

Its unique seven blade propeller design provides greater thrust. At speeds of 1-4 knots, its efficiency performance is relatively balanced and it can operate stably in various complex underwater environments.
