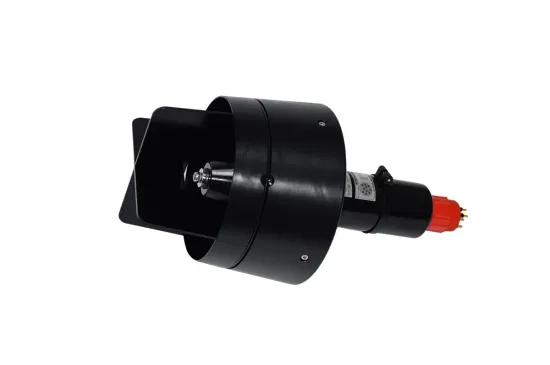

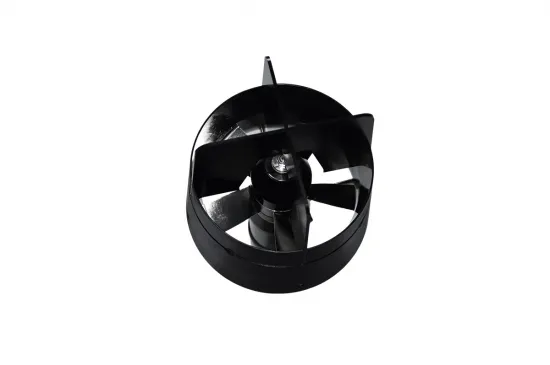

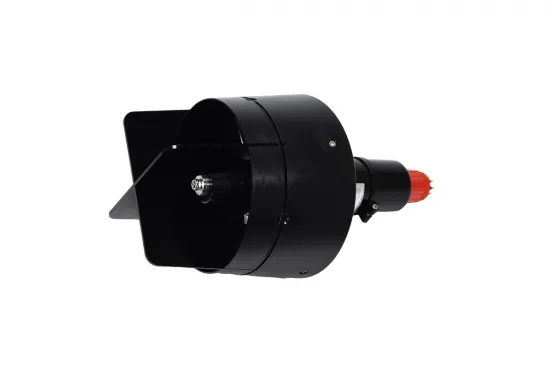

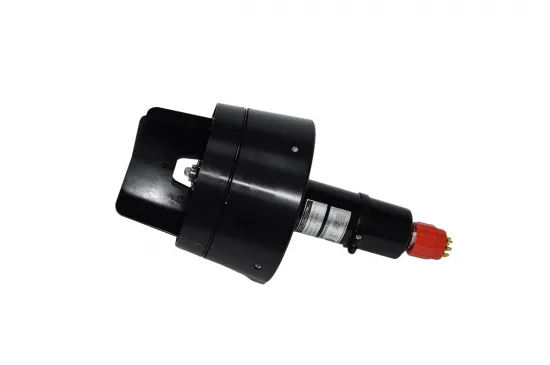

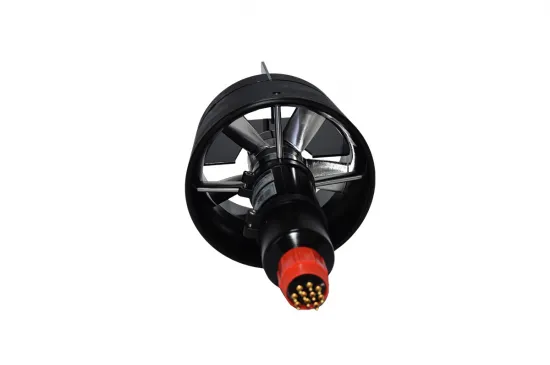

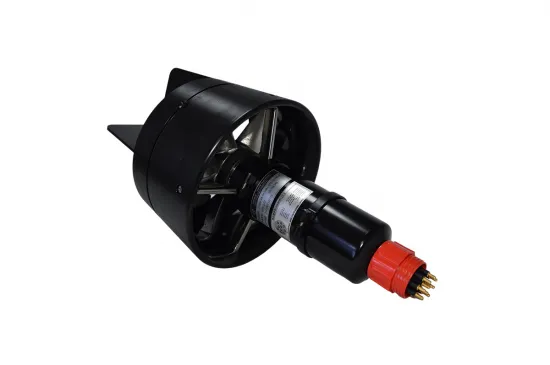

Power: 1.25 kW
Forward Thrust: 25 kg
Backward Thrust: 14 kg
Technical Parameters
| Rated speed: | 1850r/min |
| Rated voltage: | 48VDC/60VDC/95VDC/120VDC/150VDC /175VDC/200VDC/260VDC/330VDC |
| Housing: | Aluminum alloy (0-850m)/titanium alloy |
| Rotation direction: | left-hand right-hand |
| Propeller material: | Stainless steel |
| temperature: | Storage temperature: -40~70℃, working temperature: -5~40℃ |
| Sealing form: | Zero penetration magnetic coupling rotary seal structure |
| Working water depth: | 0-850/0-1500/0-3000/0-6000/Full sea depth Working water depth>1500. Oil-filled seal |
| Drive: | Built-in (0-1500m)/external |
| Signal power supply: | 12VDC (±5%), ≤ 250mA |
| Air deflector: | Black |
| Control mode/speed feedback: | Analog voltage (pulse feedback/analog voltage feedback) PPM RS485 CAN |
● Selection Parameters
| Working water depth | Outline ruler (mm) | Length(mm) | Air weight (kg) | Weight in water (kg) | Connector model | Optional voltage levels |
| 0-850 & 0-1500 | φ191 | 311~351 | 3.5~4.5 | 2.0~3.0 | MCBH8M | 48~300VDC |
| 0-3000 & 0-6000 | φ191 | 314~342 | 3.8~4.8 | 2.2~3.2 | MCPBOF8M | Tube O.D. 3/4'' Tube Bend OD 3'' |
| Total depth | φ191 | 314~342 | 4.6~4.8 | 3.0~3.2 | PBOF8M |
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
● Advantage
Applicable to:
Small and medium-sized remotely operated vehicle (ROV) with a diameter of over 300mm.
Feature:
At speeds of 1-4 knots, its efficiency performance is relatively balanced and it can operate stably in various complex underwater environments.
