Power: 80 KW
Forward thrust: 2500 KG
Backward thrust: 2500 KG
Technical Parameters

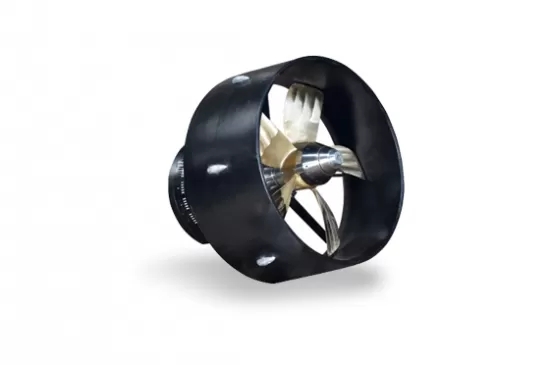

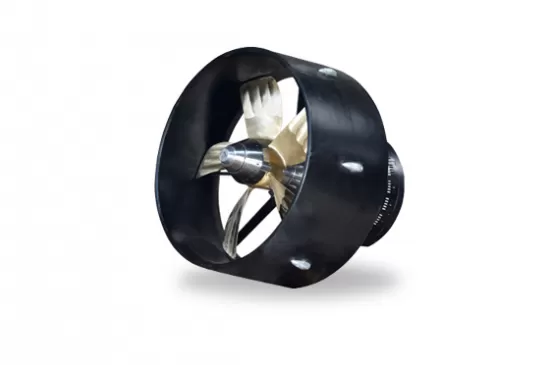

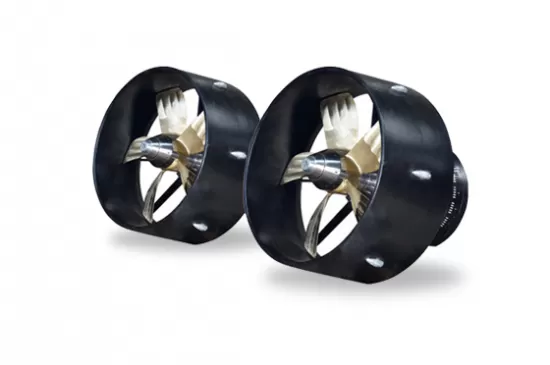

Haoye provides high-performance ROV thrusters, among which the 80KW thruster can provide 2500kg thrust. These thrusters use advanced motor technology and propeller design to ensure high efficiency and excellent performance when operating underwater.
Exceptional Thrust Output: 2500kg of continuous thrust for powerful maneuverability
High Efficiency Motor: Advanced brushless DC motor technology with 92% energy efficiency
Robust Construction: Seawater-resistant materials with IP68 rating and 1000+ hour salt spray resistance
Precision Control: Integrated closed-loop control system with ±1% thrust accuracy
Compact Design: Space-saving footprint without compromising performance
Proven Reliability: Tested for continuous operation in depths up to 6,000 meters
Customizable Options: Available with various voltage configurations (380V/690V) and shaft sizes
Maintenance-Friendly: Modular design for easy servicing and component replacement
Global Support: Comprehensive warranty and 24/7 technical assistance
Deep-sea ROV operations
Subsea welding and inspection
Heavy-duty underwater construction
Oceanographic research
Military subsea vehicles
Our 80KW ROV thrusters represent the perfect combination of power and precision for professional underwater applications. Contact Haoye engineering team today to discuss your specific requirements or request a custom configuration tailored to your project needs.
| Rated Speed | 150 RPM |
| Rated Voltage | 300VDC |
| Motor Housing | Stainless Steel |
| Rotation Direction | Left/Right |
| Propeller Material | Stainless Steel |
| Temperature | Storage Temperature: -40 ~ 70℃ Operating Temperature: -5 ~ 40℃ |
| Sealing Type | Zero Leakage Magnetic Coupling Rotating Seal Structure |
| Working Water Depth | 300 meters |
| Driver | Built-in |
| Signal Power Supply | 24VDC (± 5%), ≤ 210mA |
| Housing | Black |
| Control Mode/Speed Feedback | CAN |
If you are interested in our 80KW 2500kg ROV thrusters or have purchasing intentions, please feel free to contact us.
