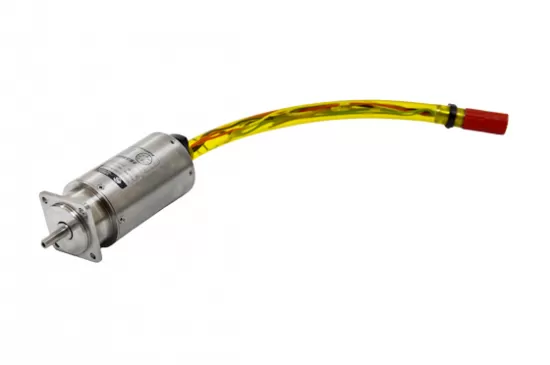

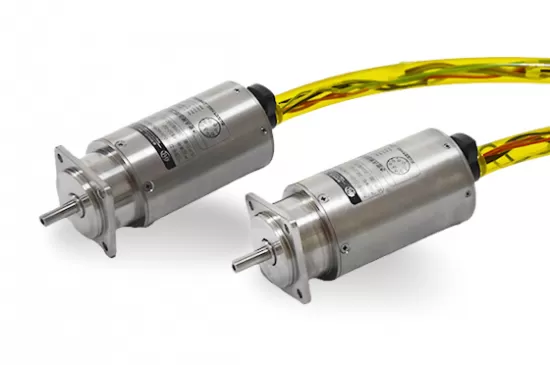

Z2-100 Rotary Actuator

Power: 400W

Operating water depth: 0 - 50m

Rated speed - torque: 80°/s - 25 Nm, 40°/s - 50 Nm

Inquire Now

Technical Parameters

Rated speed-torque	80°/s - 25 Nm, 40°/s - 50 Nm, 25°/s - 80 Nm, 50°/s - 40 Nm, 30°/s - 60 Nm,
Rated voltage	48VDC/70VDC/85VDC/100VDC/150VDC/200VDC/250VDC/300VDC
Shell material	Aluminum alloy/Titanium alloy
Temperature	Storage temperature: -40 °C to 70 °C, Operating temperature: -5 °C to 40 °C
Driver and signal power supply	Built-in, 12VDC (± 5%), ≤ 250mA

· Dual insurance of mechanical limit and electronic limit

· Control methods such as RS485 and CAN BUS communication can be selected. It supports users to customize the product communication address and the resistance value of the terminal resistor through software commands.

· Built-in over-temperature, current-limiting, and stall protection functions. It supports users to reset the protection functions through program commands.

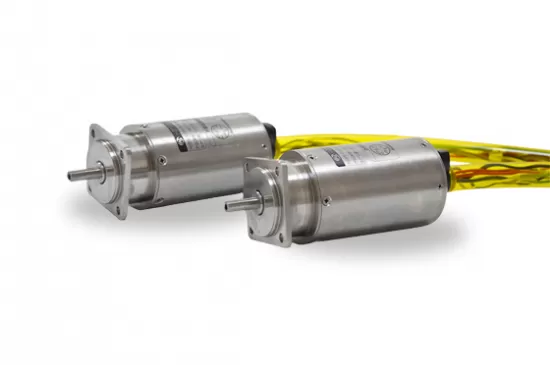

Z2-100 Rotary Actuator
