Rated Voltage/Current：48V / 146A
Propeller (Diameter)：140mm
Maximum Input Power：7kW
Thrust：70Kg
Technical Parameters
| Rated Voltage/Current | 48V / 146A |
Input Voltage Range | 35 V ~ 60VDC |
| Maximum Input Power | 7kW |
| Full-load Speed | 3100rpm |

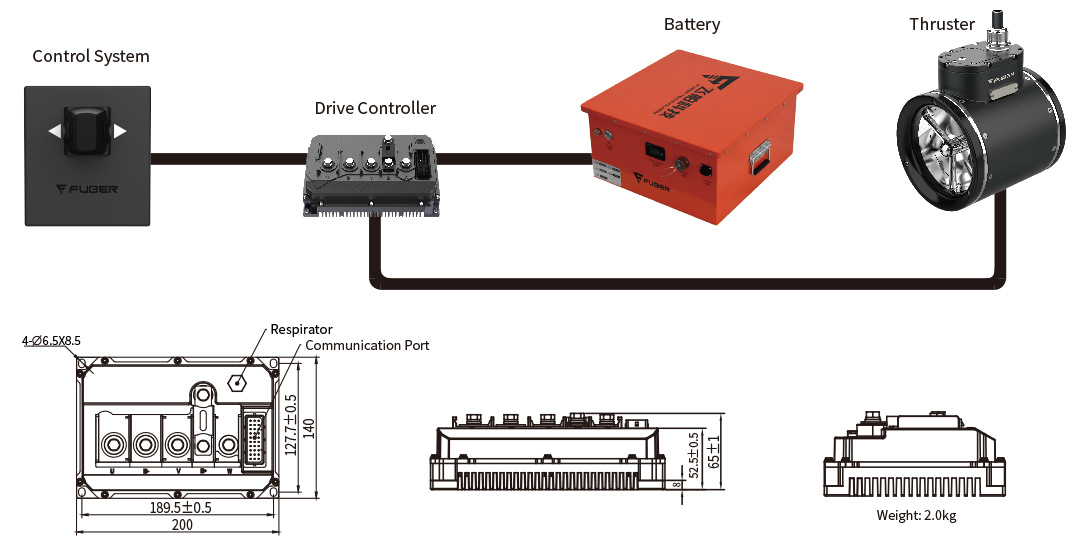

| Control System | Control Box |
| Communication | CAN |

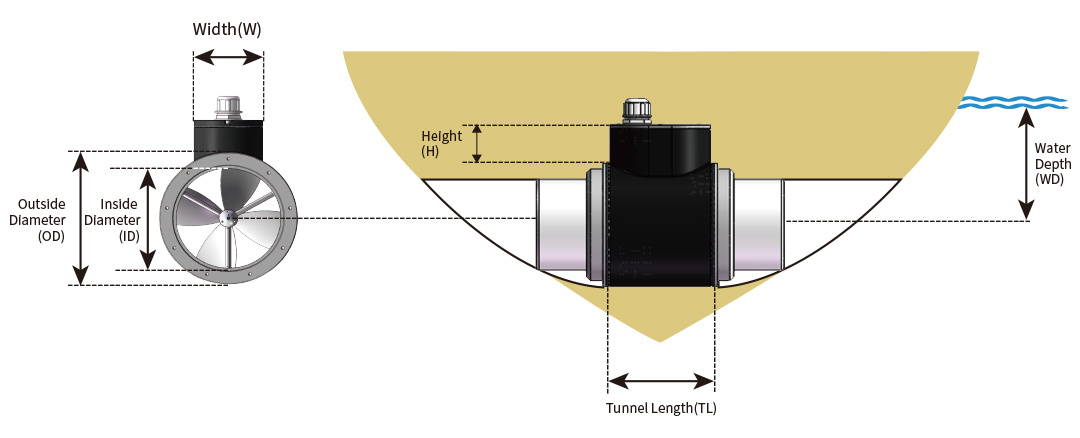

| Height(H) x Width(W) x Length(L) | 270x186x190(mm) |
| Net Weight | ≯11.5kg |
| Thrust | 70kg |
| Propeller (Diameter) | 140 mm |
| Working Environment | -10℃ - 40℃ |
| Storage Temperature | -20℃ - 60℃ |
| Propeller Material | Stainless Steel |
| Housing Material | Aluminum Alloy |
