Power: 350W
Thrust(Forward / Backward): 5.5kg/5.5kg
Rated speed: 1730r/min
Technical Parameters
| Rated voltage: | 48VDC/72VDC/100VDC/150VDC /200VDC/240VDC |
| Housing: | Aluminum alloy /Titanium alloy |
| Rotation direction: | Left-handed / Right-handed |
| Propeller material: | Stainless steel |
| Temperature: | Storage temperature: -40~70℃, working temperature: -5~40℃ |
| Sealing form: | Zero penetration magnetic coupling rotary seal structure |
| Working water depth(m): | 0-200/0-1500/0-3000/0-6000/ Full sea depth. Working water depth >200m. Oil-filled seal |
| Drive: | External |
| Signal power supply: | 12VDC (±5%), ≤ 210mA |
| Control mode/speed feedback: | Analog voltage (pulse feedback/analog voltage feedback), PPM, RS485, CAN |
● Selection Parameters
| Working water depth | Overall dimensions（mm） | lengths（mm） | air weight（kg） | Weight in water（kg） | Connector Model | Selectable Voltage Levels |
| 0-850 & 0-1500 | φ131.5 | 63 | 2.0~2.5 | 1.5~2.0 | MCBH8M | 48~300VDC |
| 0-3000 & 0-6000 | φ131.5 | 63 | 2.7 | 2.1 | MCPBOF8M | Tube OD 3/4'' Tube Bend OD 3'' |
| total depth | φ131.5 | 63 | 2.7 | 2.1 | PBOF8M |

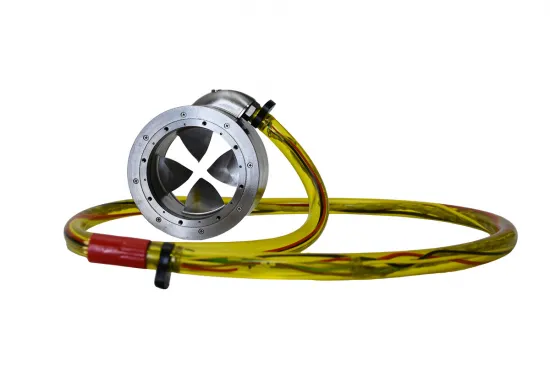

Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe, please consult the technical personnel for details.
● Product Features
Rim Drive Propulsion integrates the motor rotor and blades into one unit, eliminates the traditional through cabin propulsion shaft system and sealing system, and uses direct power transmission through electrical energy, thus occupying almost no cabin space.
The blade support structure is placed inside the guide tube, which correspondingly increases the flow area inside the guide tube and improves the propulsion efficiency.
