Rated Voltage/Current: 48V / 104 A
Input Voltage Range: 35V ~ 60VDC
Thrust: 55Kg
Net Weight: ≯11.5Kg
Communication: CAN
Technical Parameters

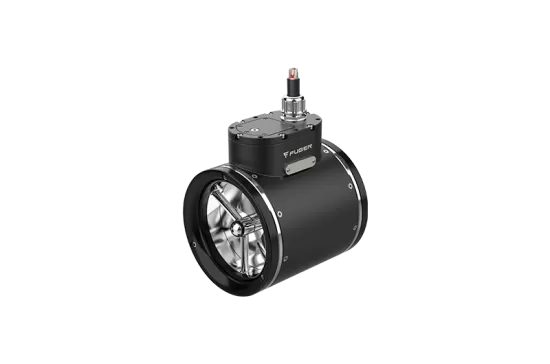

RT5.0 Rim Thruster
Rated Voltage/Current | 48V / 104 A |
Input Voltage Range | 35 V ~ 60VDC |
Maximum Input Power | 5kW |
| Full-load Speed | 2750rpm |
| Control System | Control Box |
Communication | CAN |
| Length × Width × Height | 270 x 186 x ¢190(mm) |
| Net Weight | ≯11.5kg |
| Thrust | 55Kg |
Propeller (Diameter） | 140 mm |
Working Environment | -10℃ - 40℃ |
| Storage Temperature | -20℃ - 60℃ |
Propeller Material | Stainless Steel |
| Housing Material | Aluminum Alloy |
In the surging tide of continuous development in the fields of green ships and deep - sea exploration, Haoye Technology has meticulously launched the new RIM series of underwater propulsors. With its ultimate design, powerful performance, and wide adaptability, this product provides excellent solutions for new - energy ships and underwater equipment.
Let's share some specific examples to introduce the RIM series of underwater propulsors by Haoye Technology. What are the specific requirements for underwater propulsors in the development of green ships? What are the special requirements for the performance of underwater propulsors in the field of deep - sea exploration?

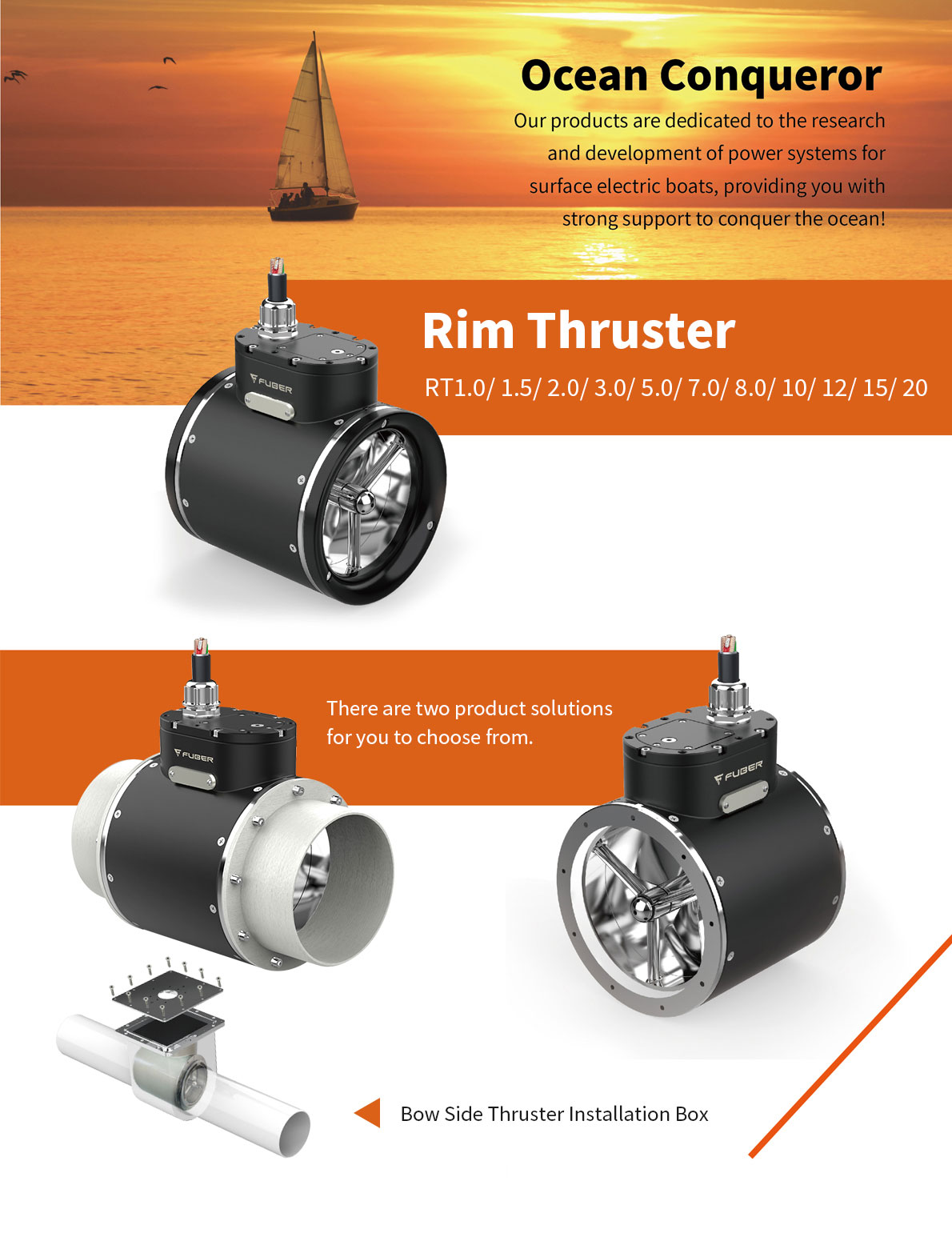

There are two product structureschemes for you to choose from.
