Rated Voltage/Current: 96V / / 208 A
Input Voltage Range: 67.2V ~ 120.4VDC
Thrust: 230Kg
Net Weight: ≯50Kg
Communication: CAN
Technical Parameters

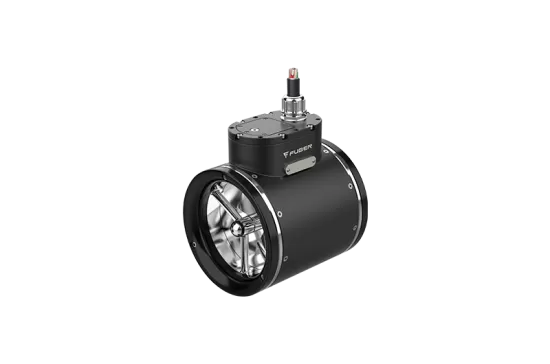

RT20 Rim Thruster
Rated Voltage/Current | 96V / 208 A |
Input Voltage Range | 67.2V ~ 120.4VDC |
Maximum Input Power | 20kW |
| Full-load Speed | 1800rpm |
| Control System | Control Box |
Communication | CAN |

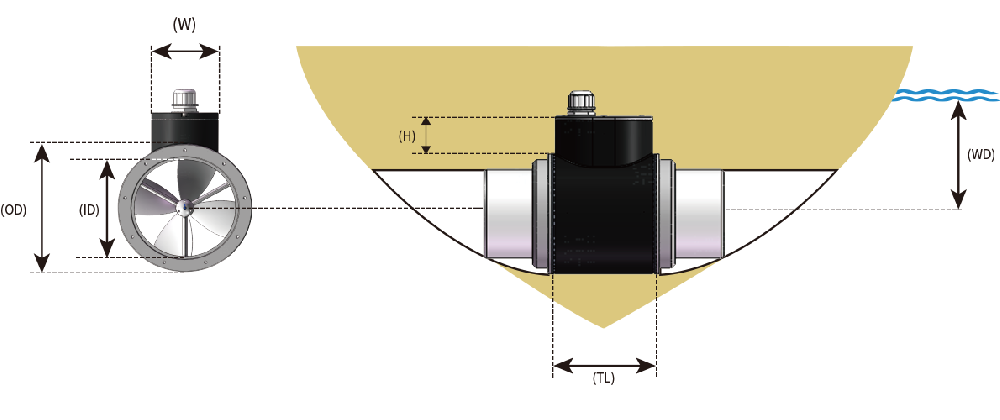

| Length × Width × Height | 345 x 270 x ¢450(mm) |
| Net Weight | ≯50Kg |
| Thrust | 230Kg |
Propeller (Diameter） | 250 mm |
Working Environment | -10℃ - 40℃ |
| Storage Temperature | -20℃ - 60℃ |
Propeller Material | Stainless Steel |
| Housing Material | Aluminum Alloy |
In the surging tide of continuous development in the fields of green ships and deep - sea exploration, Haoye Technology has meticulously launched the new RIM series of underwater propulsors. With its ultimate design, powerful performance, and wide adaptability, this product provides excellent solutions for new - energy ships and underwater equipment.
Let's share some specific examples to introduce the RIM series of underwater propulsors by Haoye Technology. What are the specific requirements for underwater propulsors in the development of green ships? What are the special requirements for the performance of underwater propulsors in the field of deep - sea exploration?
There are two product structureschemes for you to choose from.
Related Products
Power: 80 KW
Forward thrust: 2500 KG
Backward thrust: 2500 KG
Power: 40 KW
Forward thrust: 550 KG
Backward thrust: 550 KG
Rated Power: 500W
Forward Thrust: 6.5kg
Backward: 6.5kg
Power: 500 W
Forward Thrust: 7.3 kg
Backward Thrust: 7.3 kg
