Rim Thruster(ship)

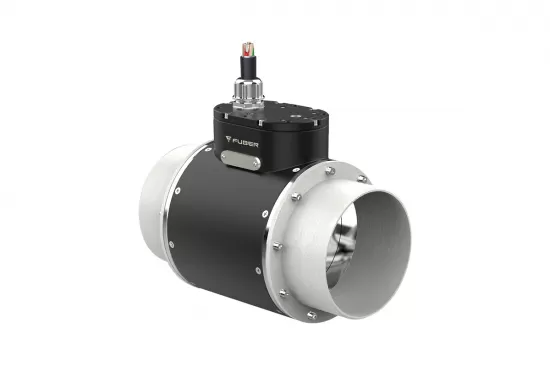

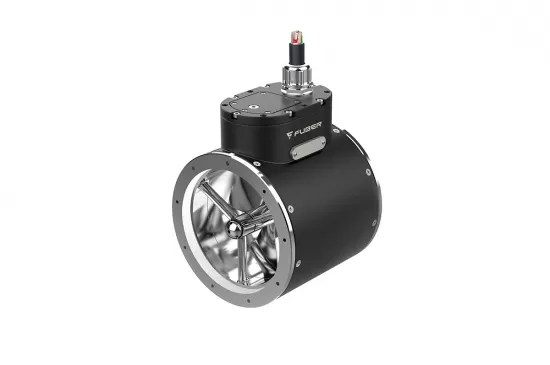

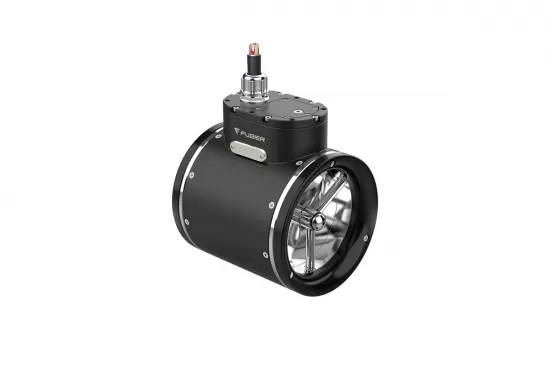

RT15kW Rim Thruster
RT15kW Rim Thruster
RT15kW Rim Thruster
RT15kW Rim Thruster

RT15kW Rim Thruster

Share:

Rated Voltage/Current:96V / 156 A

Input Voltage Range: 67.2V ~ 120.4VDC

Thrust: 191Kg
Net Weight: ≯50Kg

Communication: CAN


Technical Parameters

RT15kW Rim Thruster

RT15 Rim Thruster

Rated Voltage/Current

96V / 156 A

Input Voltage Range

67.2V ~ 120.4VDC

Maximum Input Power

15kW
Full-load Speed1640rpm

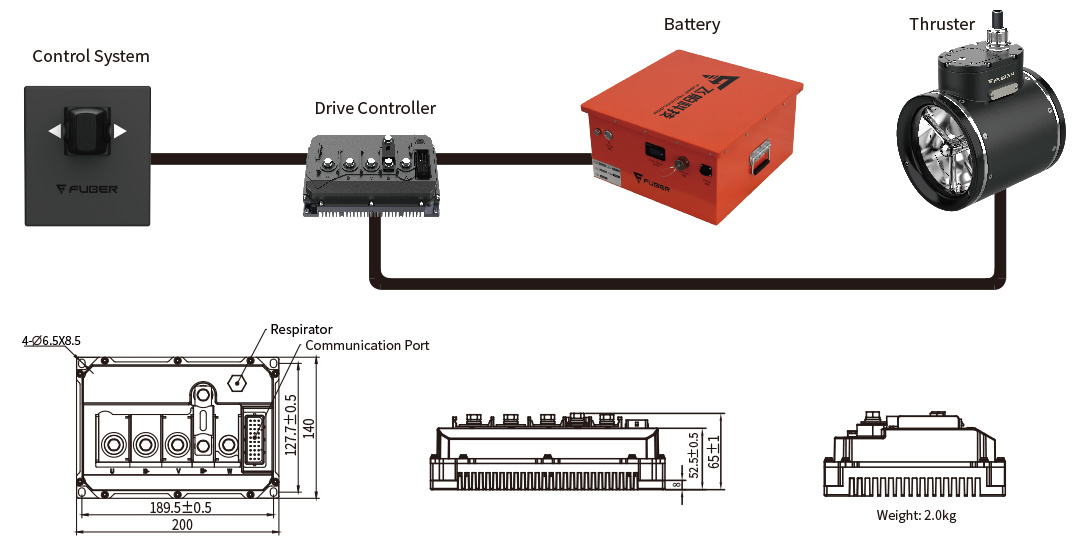

Control SystemControl Box

Communication

CAN

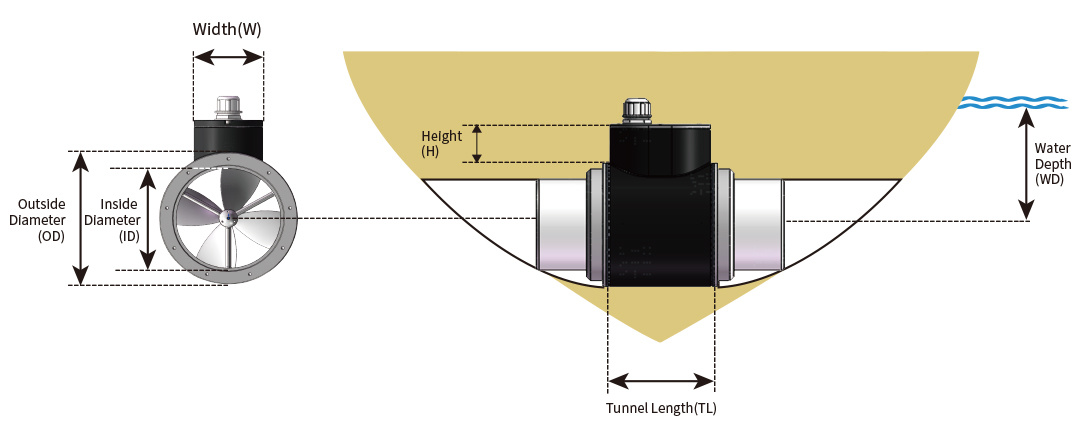

Length × Width × Height

345 x 270 x ¢450(mm)

Net Weight≯50Kg
Thrust191Kg

Propeller (Diameter)

250 mm

Working Environment

-10℃ - 40℃
Storage Temperature-20℃ - 60℃

Propeller Material

Stainless Steel
Housing MaterialAluminum Alloy

Applicable ship types

11-15m



B250S

B250S

B250S
