Rated Voltage/Current：96V / 125Ah
Input Voltage Range：77V - 120VDC
Rated Power：12KW / 10KW
Technical Parameters

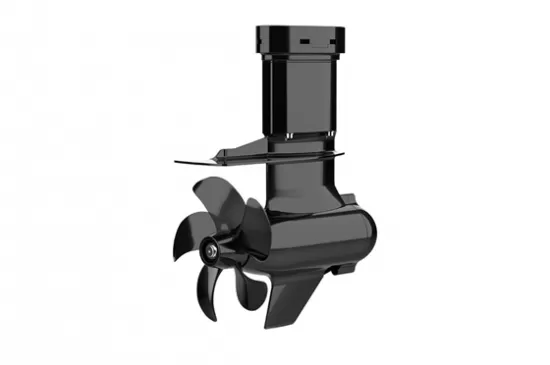

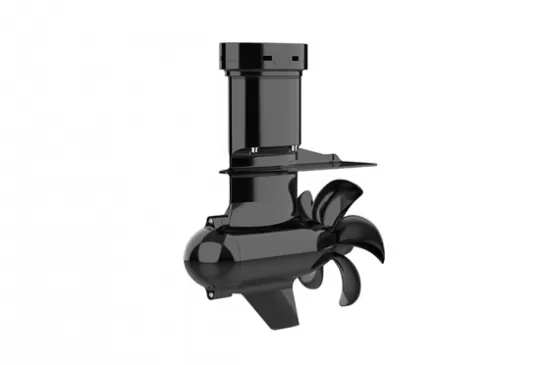

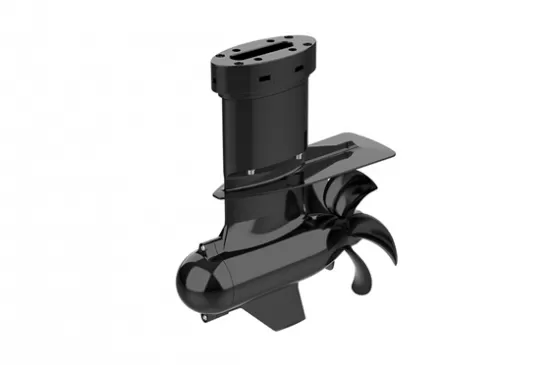

Parameters of electric outboard engines
| Rated Voltage/Current | 96V/125Ah |
| Input Voltage Range | 77V - 120VDC |
| Rated Power（Forward/Reverse） | 12KW / 10KW |
| Thrust | 185kg |
| Full-load rotational speed (forward direction) | 1500rpm |
| Control | Control box |
| Net Weight | 45kg |
| Communication | CAN BUS |
| Length×Width×Height(mm) | 676x547x320(mm) |
| Axis Length(mm) | 515mm |
| Angle of Lifting | / |
| Max Lifting Angle | / |
| Propeller diameter | 320mm |
| Operating Temperature / Storage Temperature | -10℃ to 40℃ / -20℃ to 60℃ |
