Share:
Rated Voltage/Current：540V/93A
Input Voltage Range：400V - 720VDC
Rated Power：50kW
Technical Parameters

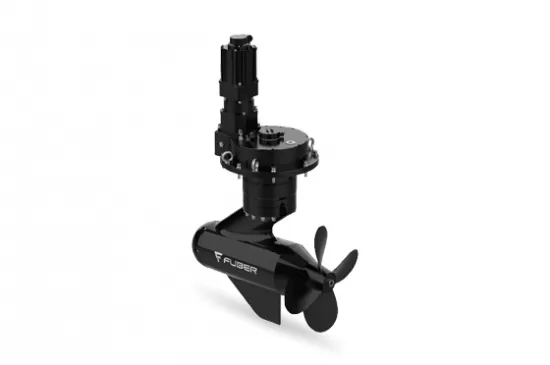

| 50kW fully-rotating pod | |
| Rated Voltage/Current | 540V / 93Ah |
| Input Voltage Range | 400V - 720VDC |
| Rated Power（Forward/Reverse） | 50kW |
| Full-load rotational speed (forward direction) | 1150rpm |
| Net Weight | 475kg |
| Rotation Angle | 0-330° |
| Length×Width×Height(mm) | 784×494×1226 (mm) |
| Propeller diameter | 400mm |
| Operating Temperature / Storage Temperature | -10℃ to 40℃ / -20℃ to 60℃ |
| Slewing System | |
| Voltage Range | AC 380V |
| Rated Torque | 1200N·m |
| Rated Current | 8.9A |
| Rotational Speed | 18°/s |
| Rated Power | 3kW |
| Communication | CAN BUS |
