Rated Voltage/Current：72V/41A
Input Voltage Range：50V - 90VDC
Rated Power：3kW
Technical Parameters

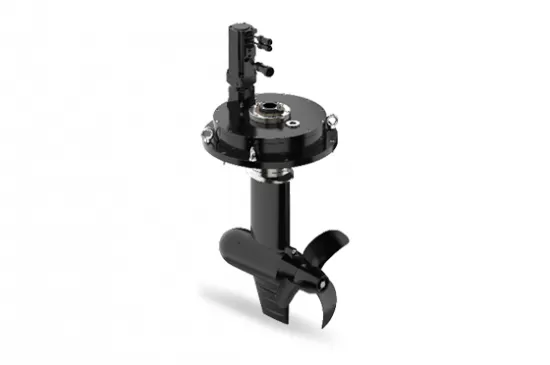

| 3kW fully-rotating pod | |
| Rated Voltage/Current | 72V / 41Ah |
| Input Voltage Range | 50V - 90VDC |
| Rated Power（Forward/Reverse） | 3kW |
| Full-load rotational speed (forward direction) | 1400rpm |
| Net Weight | 46kg |
| Rotation Angle | 0-330° |
| Length×Width×Height(mm) | 378×360×820 (mm) |
| Propeller diameter | 299mm |
| Operating Temperature / Storage Temperature | -10℃ to 40℃ / -20℃ to 60℃ |
| Slewing System | |
| Voltage Range | DC 24-48V |
| Rated Torque | 60N·m |
| Rated Current | 12A |
| Rotational Speed | 18°/s |
| Rated Power | 600W |
| Communication | CAN BUS |
