Rated Voltage/Current：48V / 32Ah
Input Voltage Range：40V - 69VDC
Rated Power：1.5kW
Technical Parameters

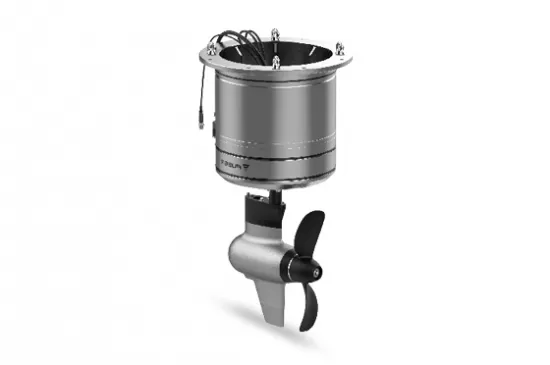

| 1.5kW fully-rotating pod | |
| Rated Voltage/Current | 48V / 32Ah |
| Input Voltage Range | 40V - 69VDC |
| Rated Power（Forward/Reverse） | 1.5kW |
| Full-load rotational speed (forward direction) | 1200rpm |
| Net Weight | 33kg |
| Rotation Angle | 0-330° |
| Length×Width×Height(mm) | 281×350×629 (mm) |
| Propeller diameter | 291mm |
| Operating Temperature / Storage Temperature | -10℃ to 40℃ / -20℃ to 60℃ |
| Slewing System | |
| Voltage Range | 48V |
| Rated Torque | 25N·m |
| Rated Current | 2A |
| Rotational Speed | 18°/s |
| Rated Power | 100W |
| Communication | CAN BUS |
