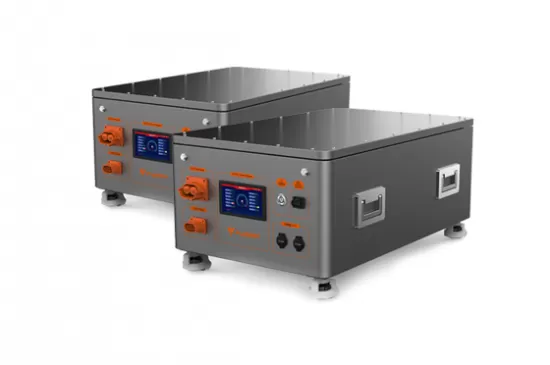

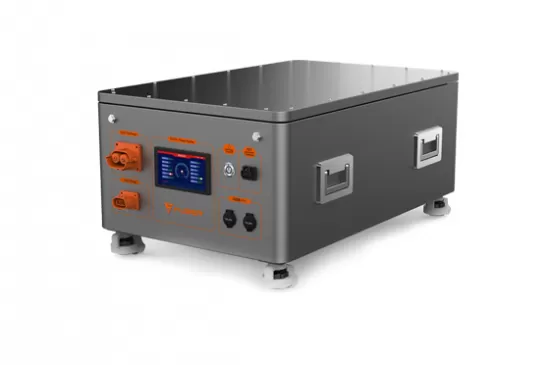

Rated voltage/capacity：76.8V/200Ah
Compatible model：Global 3.0
Rated energy：15360Wh
Technical Parameters
| Rated voltage/capacity | 76.8V/200Ah |
| Compatible model | Global 3.0 |
| Rated energy | 15360Wh |
| Battery size | 850×500×460mm |
| Battery weight | 125kg |
| Charging voltage | 86.4V |
| Discharge cutoff voltage | 67.2V |
| Standard charging current | 50A |
| Max charging current | 106A |
| Max sustainable discharge current | 200A |
| Series connection | Not support |
| Parallel connection | Not support |
| Storage temperature | -20~60℃ |
| Charging temperature | 0~55℃ |
| Discharge temperature | -10~55℃ |
| Protection level | IP65 |
| Suggested storage capacity | 45%~50% |
| Cycle life | >4000 times |
