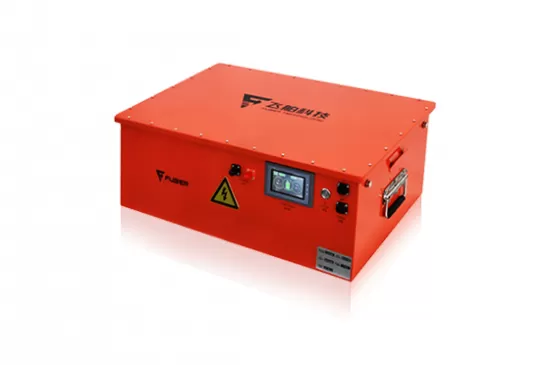

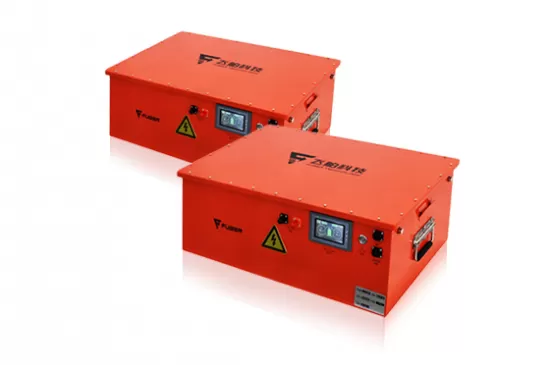

Rated Voltage / Capacity：153.6V / 200Ah
Compatible Model：Global 6.0
Rated Energy：30720Wh
Technical Parameters
| Rated Voltage / Capacity | 153.6V / 200Ah |
| Compatible Model | Global 6.0 |
| Rated Energy | 30720Wh |
| Battery Size | 830×530×290 mm |
| Battery Weight | 137kg |
| Charging Voltage | 172.8V |
| Discharge Cutoff Voltage | 124.8V |
| Standard Charging Current | 15A |
| Max Charging Current | 100A |
| Max Sustainable Discharge Current | 200A |
| Series Connection | Not Support |
| Parallel Connection | Not Support |
| Storage Temperature | - 20 ～60℃ |
| Charging Temperature | 0 ～55℃ |
| Discharge Temperature | - 10 ～55℃ |
| Protection Level | IP65 |
| Suggested Storage Capacity | 45％～50％ |
| Cycle Life | ＞ 4000 Times |
