Technical Parameters
| Battery Specifications | 102.4V / 100Ah |
| Applicable Models | 3kW、10kW、12kW、15kW |
| Rated Energy | 10.24kWh |
| Dimensions | 935×683×140mm |
| Weight | 90kg |
| Charging Voltage | 116.8V |
| Discharge Cut-off Voltage | 86.4V |
| Standard Charging Current | 20A |
| Maximum Charging Current | 100A |
Maximum Continuous Discharge Current | 100A |
| Series Connection | / |
| Parallel Connection | Can |
| Storage Temperature | -20℃～45℃ |
| Charging Temperature | 0～55℃ |
| Charging Heating Function | yes |
| Discharge Temperature | -20～60℃ |
IP Rating | IP67 |
| Storage Capacity | 50%SOC |
Cycle Life | ≤4000 Cycles 70%SOC |
| Certification | CCS,CE,MSDS,UN |
Small investments bring long-lasting returns

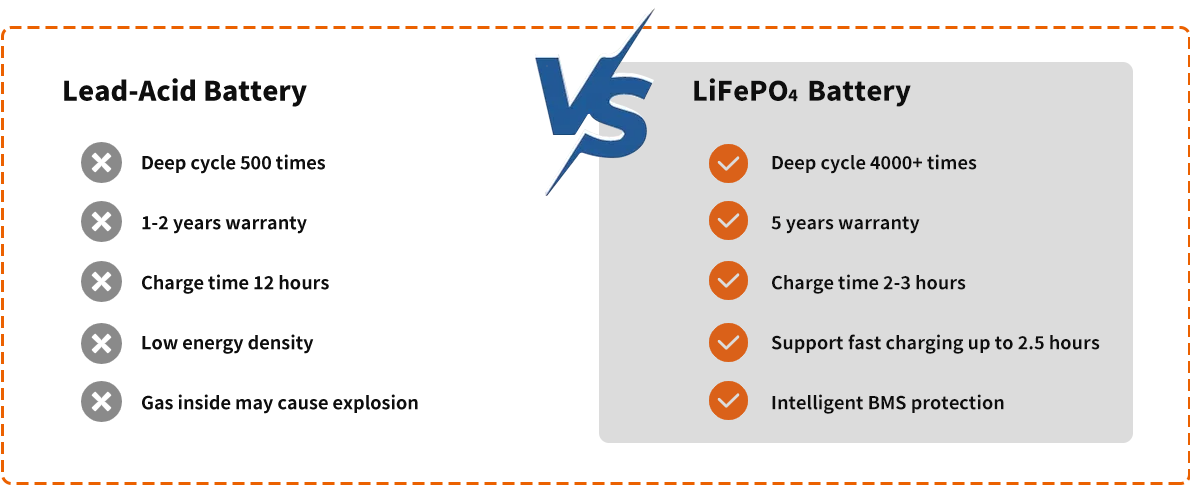

Although the current price of marine lithium batteries is higher than that of lead-acid batteries, they can bring many cost-saving benefits in the long run.
· Longer service life reduces overall battery investment.
· No need for maintenance, water addition, or replacement, saving labor and costs.
· Energy-efficient with less downtime, improving production efficiency.
· Lower total cost of ownership (TCO) throughout the lifecycle.

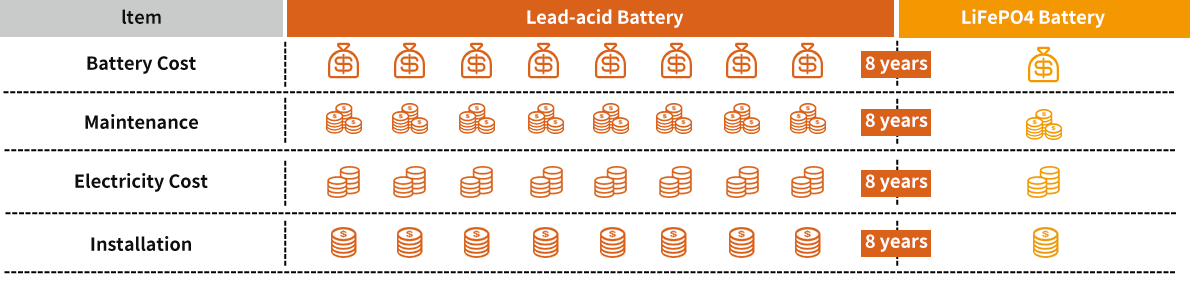

Below is the 8-year expenditure table comparing FUBER LiFePO4 batteries with lead-acid batteries.
8-year cost comparisons to improve your overall return on investment .
Save up to 50% Expenses in 8 years.
