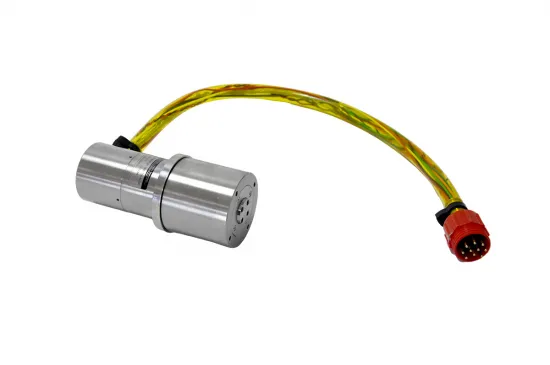

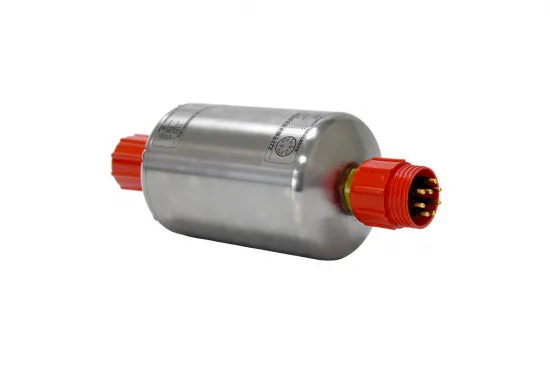

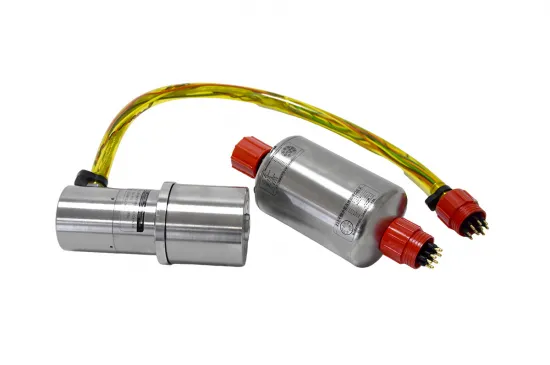

Z22 Rudder
Z22 Rudder
Z22 Rudder
Z22 Rudder
Z22 Rudder
Z22 Rudder

Z22 Rudder

Share:

Power: 400W

Material: Aluminum alloy / titanium alloy

Working water depth: 0-50m / full sea depth

Technical Parameters

Rated voltage:24VDC/48VDC/70VDC/85VDC/100VDC/150VDC/200VDC/250VDC/300VDC
Working water depth:0-50m / full sea depth
Material:Aluminum alloy / titanium alloy
Temperature:Storage temperature: -40~70℃, working temperature: -5~40℃
Rated speed - torque:80r/min-25N.m 40r/min-50N.m 25r/min-80N.m 50r/min-40N.m 30r/min-60N.m
Drive:External
Signal power supply:12VDC (±5%), ≤ 250mA
Control mode/speed feedback:Analog voltage (pulse feedback / analog voltage feedback)PPM RS485 CAN



● Selection Parameters


Working water depthOverall dimensions(mm)lengths(mm)air weight(kg)Weight in water(kg)Connector ModelSelectable Voltage Levels
0-50φ1062254.8~6.03.2~4.4MCBH8MTube OD 3/4'' Tube Bend OD 3''
total depthφ1062254.8~6.03.2~4.4PBOF8M

Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe, please consult the technical personnel for details.
